BEHRINGER BM-14M ANALOG DELAY PEDAL

FEATURES

• Analogue Circuitry– The Behringer BM-14 Analogue Delay is as close to an authentic recreation as possible, featuring analogue circuitry for a truly vintage voiced sound design workstation, built for the modern world.

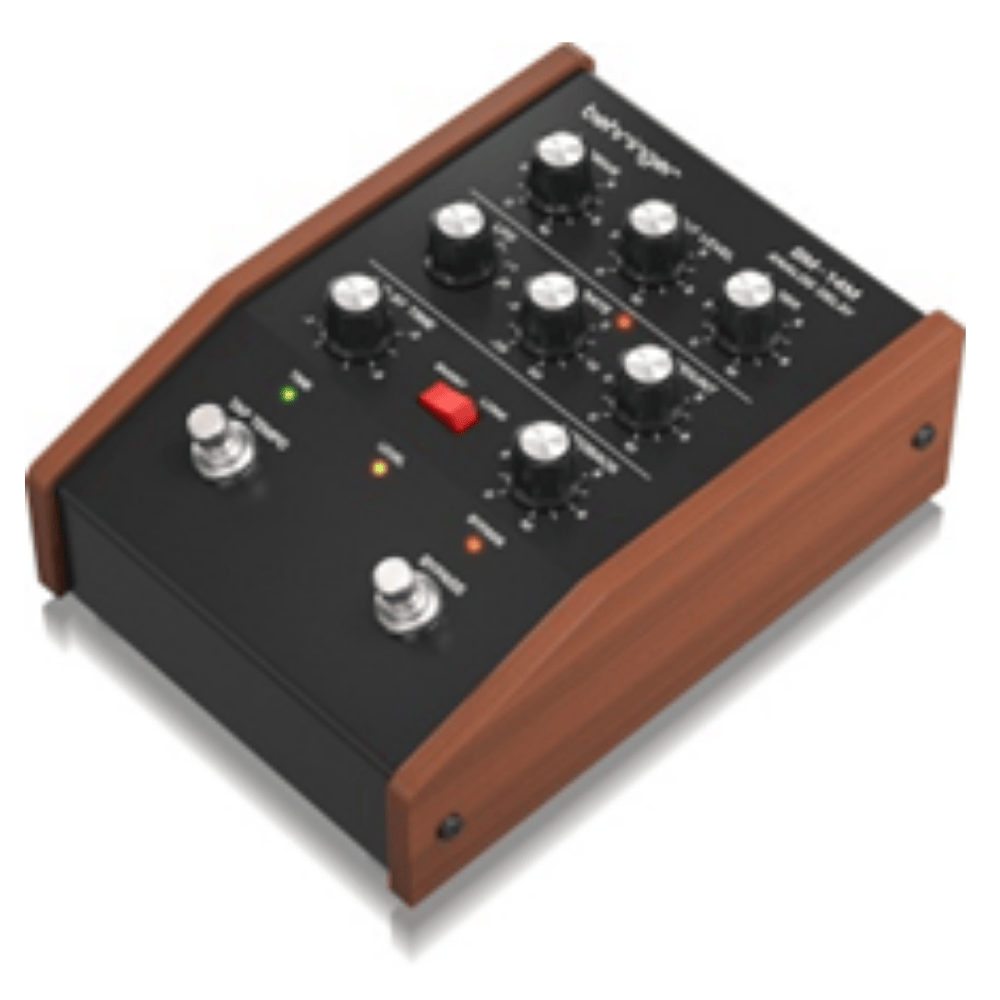

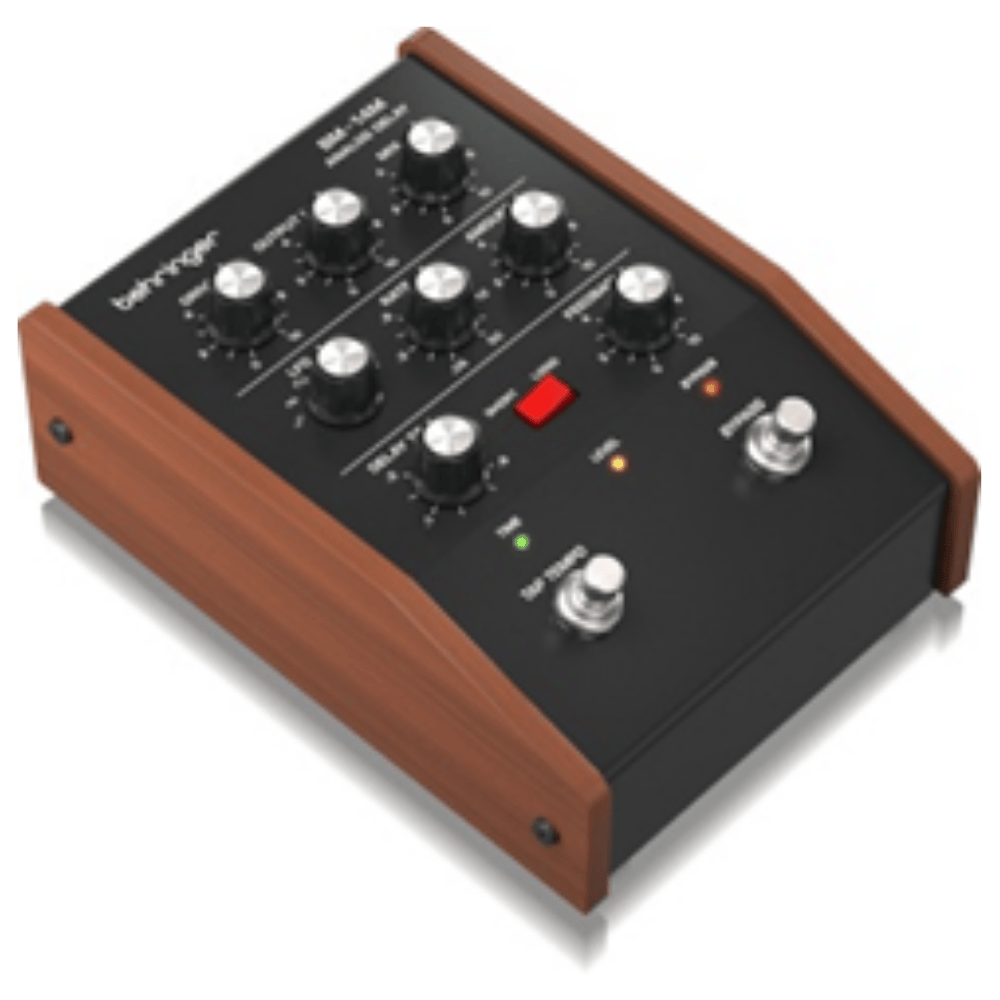

• Classic Aesthetics– Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-14 is built to withstand life on the road.

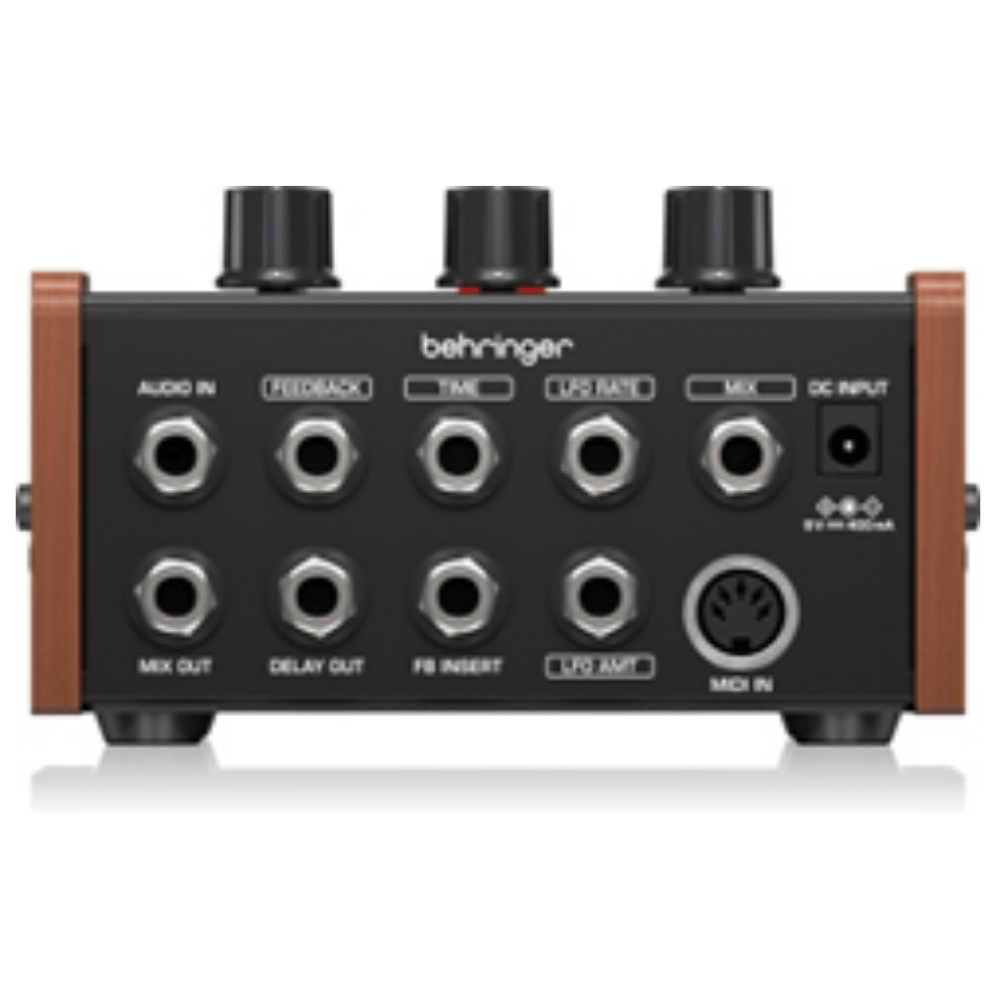

• Modular Style I/O– This delay’s versatile I/O allows you to push your creativity to the limits by controlling each of its parameters via an external expression pedal. Furthermore, the BM-14 can be combined with other CV pedals and devices or used with MIDI for nearly endless amounts of Delay possibilities. Its Mix and Delay outputs make any rig possible from straight in to complex wet/dry setups.

SPECIFICATIONS

Audio in Audio Connections

• Connector: 1 x 1/4″ TS, unbalanced
• Impedance: 1 MΩ

Mix out

• Connector: 1 x 1/4″ TS, unbalanced
• Output impedance: 600 Ω

Delay out

• Connector: 1 x 1/4″ TS, unbalanced
• Output impedance: 600 Ω

FB insert (send/return)

• Connector: 1 x 1/4″ TRS, unbalanced
• Impedance: 440 Ω
• Input impedance: 140 kΩ

Control Connections

Feedback

• Connector: 1 x 1/4″ TRS
• Impedance: 180 kΩ, unbalanced
• CV input range: 0 V to +5 V

Time

• Connector: 1 x 1/4″ TRS
• Impedance: 34 kΩ, unbalanced
• CV input range: 0 V to +5 V

LFO rate

• Connector: 1 x 1/4″ TRS
• Impedance: 34 kΩ, unbalanced
• CV input range: 0 V to +5 V

LFO amt

• Connector: 1 x 1/4″ TRS
• Impedance: 34 kΩ, unbalanced
• CV input range: 0 V to +5 V

Mix

• Connector: 1 x 1/4″ TRS
• Impedance: 180 kΩ, unbalanced
• CV input range: 0 V to +5 V
• MIDI in: 2 x 5-pin DIN, 16 channels

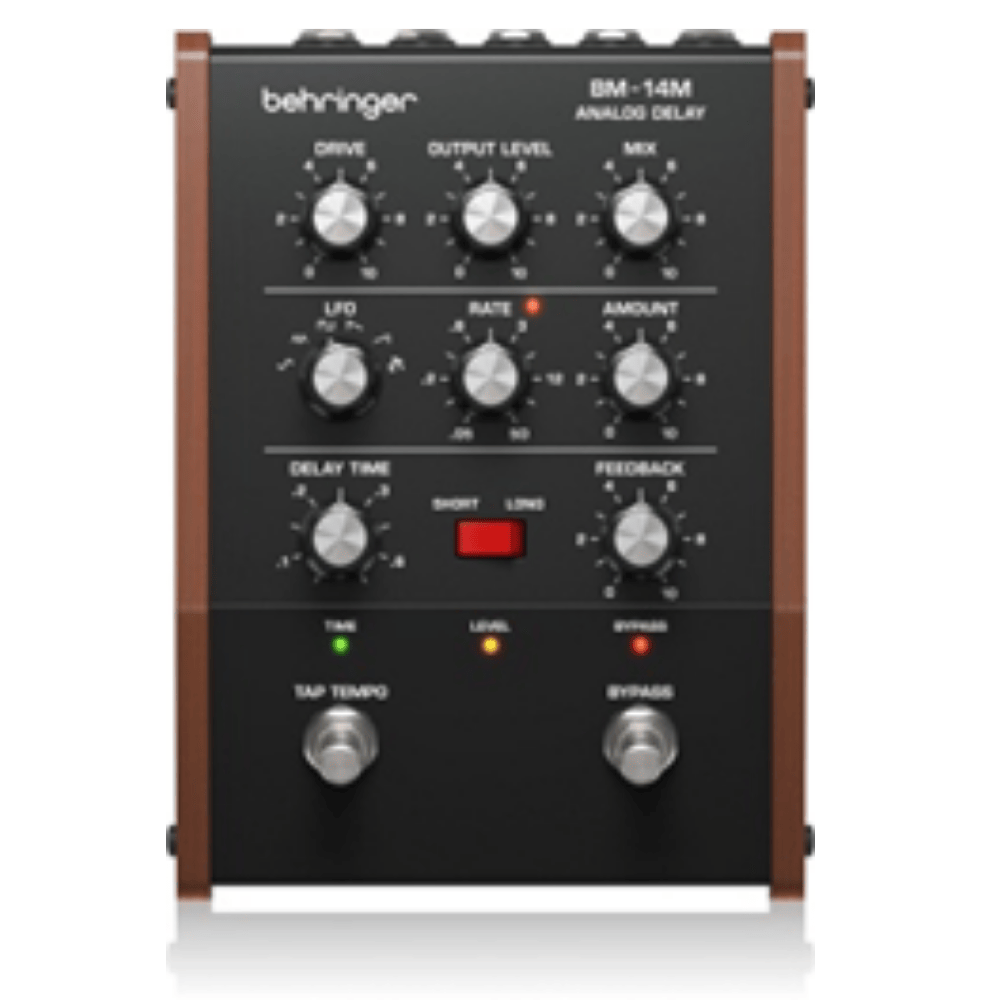

Controls

• Drive: 1 x rotary knob
• Output level: 1 x rotary knob
• Mix: 1 x rotary knob
• LFO: 1 x rotary knob
• Rate: 1 x rotary knob
• Amount: 1 x rotary knob
• Delay time: 1 x rotary knob
• Short/long: 1 x rocker switch
• Feedback: 1 x rotary knob
• Tap tempo: 1 x footswitch
• Bypass: 1 x footswitch

System

• Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
• Dynamic range: > 83 dB
• Signal-to-noise ratio: > 73 dB
• Overall gain: +33 Db

Power Supply / Voltage

• Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
• Power consumption: 1.8 W

Dimensions / Weight

• Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75″)
• Weight: 1,100 g (38.8 oz)
